2.1

Single wire diameter

φ0.3mm-φ2.5mm

2.3

Strand pitch range

43～766mm

2.4

Cage max rotation speed

37-89r/min

2.5

capstan line speed range

3.82~28.24 m/min

2.6

Pay-off in cage

φ315 buyer standard

2.7

Speed of flat steel tape winding machine

319r/min

2.8

Thickness of flat steel strip×width

0.8×2.0mm

2.9

flat steel tape winding machine pitch

0 ~ 88.5mm (stepless electric control adjustment)

2.10

flat steel tape winding machine motor power

3.0kw (AC variable frequency motor)

2.11

Take-up bobbin size

PN1250 (buyer standard)

2.12

Center pay-off size

PN1300 (buyer standard)

2.13

Main motor power

30Kw (AC variable frequency motor)

2.14

Center rotation pay-off motor power

2.2Kw (AC variable frequency motor)

2.15

Take-up motor power

4.0Kw (AC variable frequency motor)

2.16

Machine center high

1000mm

3.1

Ø1300 rotation pay-off stand

1 set

3.2

# type guide line stand

1 set

3.3

30 bobbins strand cage

1 set (U-shaped push-pull safety cover)

3.4

Wire collecting die holder

1 set (Provide a set of molds)

3.5

Positive side straightening device

1 set(provide a set pressure roller)

3.6

flat steel tape winding machine

1 set(U-shaped push-pull safety cover)

3.7

Electromechanical Meter counter

1 set

3.8

φ1000 double capstan device

1 set

3.9

φ1250 top tip take-up and arrange line frame

1 set

3.10

Electrical control system

1 set

3.11

Mechanical transmission system

1 set(U-shaped ground shaft safety shield)

3.12

Safety cover

1 set

4.2.1

Adapt bobbin size

φ315 buyer standard

4.2.2

Pitch

43～766 mm

4.2.3

Max stranding OD

20mm

4.2.4

Speed change of main motor

6

4.2.5

Rotation speed range

37～89r /min

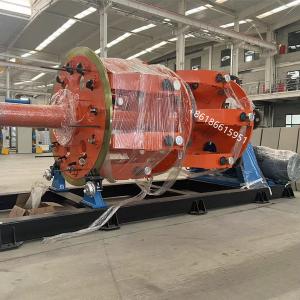

4.2.6 The main winch cage gearbox is six-stage, with left-right and neutral functions;

4.2.7 The winch cage is composed of hollow shaft, winch, reel frame and splitter. The axis line of reel frame and the center line of main shaft are parallel to each other. A planetary gear untwisting mechanism is installed behind the winch to realize untwisting. The untwisting of the wire reel frame is connected with the untwisting gear through the spline untwisting shaft, so as to achieve the purpose of untwisting, avoid the phenomenon of "rolling key", and greatly improve its reliability

4.2.8 Tension band is used to adjust the tension of the wire reel frame in the cage, which can keep the tension of the core wire released from each cradle stable and balanced; Manual end shaft clamping reel.

4.2.9 A wire break protection control ring is attached at the end of the cage splitter, and the wire can be stopped for wire break protection.

4.2.10 Each winch is connected with the main shaft through flange, with good overall stiffness, high coaxiality of winch and balanced operation of winch cage; There is a front support in front of the hinge cage, the main shaft is supported on the box body and the front support respectively through two sets of double row self-aligning roller bearings, and the cradle frame is equally arranged on the circumference of each gear 6 in the hinge cage.

4.2.11 The outlet of the stranding cage is equipped with a single wire pre twisting device, and the strand is not loose after the single wire pre twisting and stranding

4.2.12 The main winch brake adopts plane pneumatic brake
