Cabling Machines, Cable Laying Machines, Cradle Laying-up Machines, Insulated Cable Twisting Machines

Cradle Laying-up Machine / Cantilever Single Twisting Machine / Cabling Machine / Cable Laying Machine / Drum Type Laying-up Machine / Drum Twister / Multi Core Power Cable Making Machine.

1.Application:

Layingupmachine(cabling machine) is mainly used for stranding and armoring medium and low voltage cable, signal cable, control cable, mining cable, etc.

2. Types of cable laying machine:

(1).Cantilever single twisting machine is irregular stranding 50sqmm below.

(2).Bow type cabling machine is twisting 90sqmm below. high speed 160rpm.

(3). Cradle cabling machine is use for round or shaped cable, upto 300sqmm.

(4). Drum twister is use for single core and large cross-section cable. like 4x300sqm.

(5). Planetary cabling machine is use for multi-core insulated wire, like 3 to 128 wire.

cabling machine from capstian tech

3. Driving form:

(1). Motor driving: each cage use independent motor driving.

(2). Shaft driving: all cage use one shaft to driving.

driving form of cabling machine from capstian tech

4. Technical parameter of cradle cabling machine:

Model	CLY-800	CLY-1000	CLY-1250	CLY-1600	CLY-2000
Single wire Dia	Φ5-14mm	Φ5-20mm	Φ6-25mm	Φ10-35mm	Φ15-45mm
Pitch	208-3680mm	208-3680mm	208-3680mm	420-7569mm	460-8600mm
Max rotation speed	10-25rpm	10-25rpm	10-25rpm	5-13rpm	3.9-11.2rpm
Max linear speed	4.98m/min	4.98m/min	4.98m/min	5.31-40.08m/min	5.31-40.08m/min
Max stranding OD	Φ45mm	Φ60mm	Φ80mm	Φ100mm	Φ120mm
No-metal taping head speed	185-416rpm
Metal taping head speed	185-416rpm
Pay-off in cage	PND800	PND1000	PND1250	PND1600	PND2000
Central pay-off	PN800	PN1000	PN1250	PN1600	PN2000
Capstan wheel Dia.	1800mm	2000mm	2000mm	2500mm	2500mm
Take-up	PN1600	PN2000	PN2500	PN3150	PN3150
Motor power	22kw	30kw	37kw	75kw	22kw

Ningbo Capstian Technology Co.,Ltd.

Cabling Machines

1250mm Cantilever Single Twisting Machines Wire Buncher

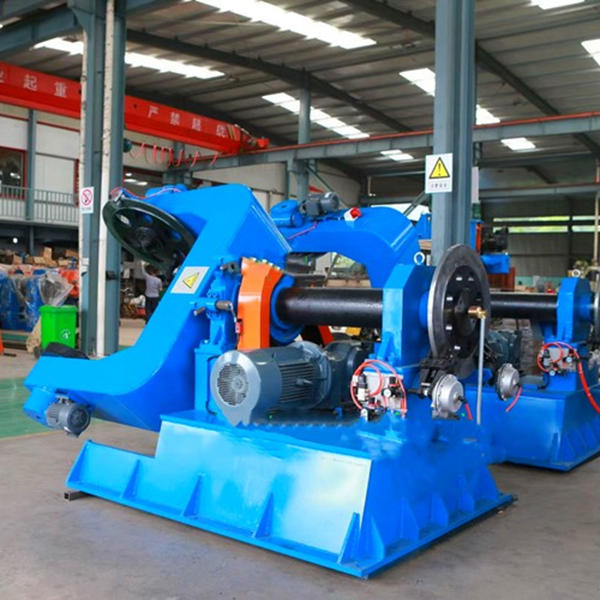

1250mm-2500mm Fork Type Rotation Pay-off Frame For Drum Type Laying-up Machines
