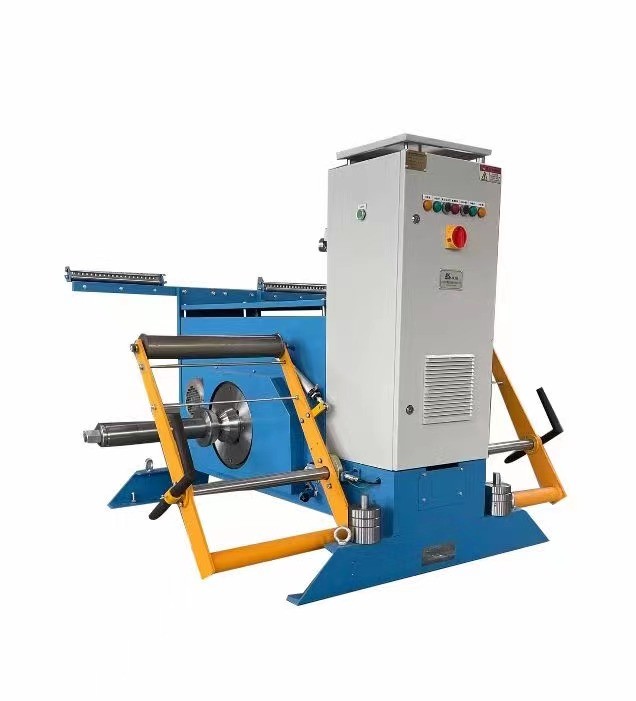

PN630-PN1000 Double Reel Active Pay-off Machine.

1000 series double reel active pay-off machine

1. Constant tension untwisted single cylinder pay-off machine. Suitable for single line and Multiple wire drawing pay-off. Matching with high-speed stranding machine, easy to operate and save More building area.

2.Specification: Model: FC-1000

2.1. Purpose: It is suitable for parallel pay-off and used with high-speed stranding machine.

2.2. Single wire diameter: 0.1mm-1.5mm

2.3. Bobbin size: PND1000.

2.4. Motor power: 4KW

2.5. Tension control: pneumatic tension

2.6. Line speed: feedback the signal to the inverter to control the motor speed Through the displacement sensor.

2.7. Control method: Synchronize with the host

2.8. Protection: Shut down when disconnected.

2.9. Fastening method: pneumatic fastening.

4x630mm active pay-off below:
