Cable Auxiliaries

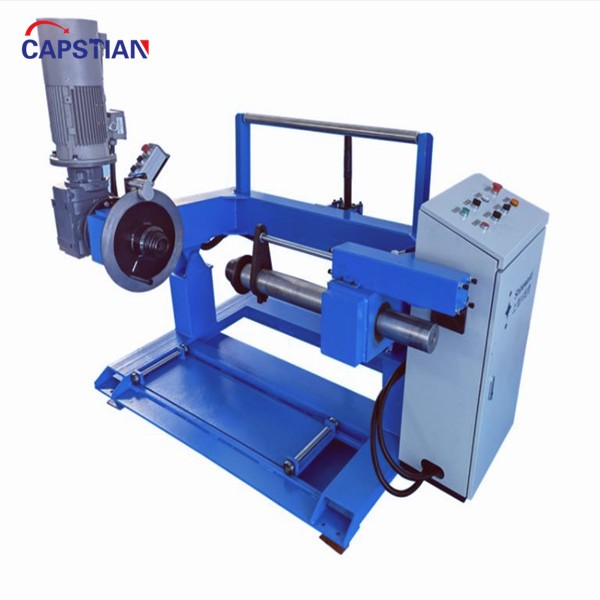

Swing Arm Active Pay-off Rack

  • Model Number:630-1250
  • Usage:wire and cable
  • Max. capacity:500kg
  • Suitable dia. of the cable:5-40mm
  • Line speed:15-100m/min
  • Quantity of cylinders:3 pairs
  • Motor power:5.5kw AC motor Siemens
  • Product Detail

Swing Arm Active Pay-off Rack / Active Pay-off Stand / Wire and Cable Equipment


1. Use:

It is matched with cable production line and used for high-speed pay-off of small diameter copper, aluminum monofilament or insulated wire.


2. Features:

(1). Frequency conversion speed control, integrated tension swing bar, can ensure constant tension at high speed during pay-off.
(2). Sensitive response, motor-driven pay-off can effectively prevent small diameters from being stretched or broken during pay-off.
(3). The loading and unloading, lifting and braking of the spool adopts pneumatic control, independent pressure regulation, safe and fast.
(4). Small size, flexible placement and space saving.
(5). The pay-off speed can be up to 400M/min.
(6). The whole machine adopts international brands or domestic high-quality products to improve the overall stability of the equipment, low failure rate and convenient operation.


3. Technical Parameter:


Model


Motor power (Kw)


Applicable wire diameter (mm)


Applicable wire reel (mm)


Pay-off speed (M/min)


Maximum load

(Kg)

 630

4

1-8

500- 630

350

500

 800

5.5

1-8

630- 800

400

800

 1000

7.5

1-15

800-1000

350

1000

 1250

7.5

3-15

800-1250

250

1500

1600

11

7-25

1000-1600

200

2000
