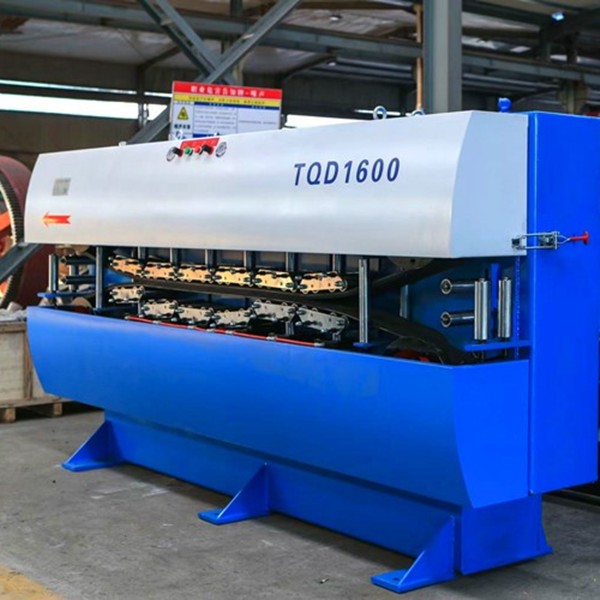

Pneumatic Caterpillar Machine Haul-off Machine For Cable Manufacturing

  • Processing Type::Haul-Off Machine
  • Warranty time:1 Year
  • Core Components:Engine, Gearbox
  • Voltage:380V
  • Usage:extruding and stranding
  • Tractive Force:200~15000kg
  • Speed: 20-150m/Min
  • No. of Cylinder:3-14pairs
  • Motor Power:3-55kw
  • Product Detail
  • Parameters

Pneumatic Caterpillar Machine Haul-off Machine For Cable Manufacturing.


1. Equipment application: mainly used for various cable production lines of single machine or front and rear double traction.


2.Purpose: 1. The whole frame is made of high-quality steel plate bending and splicing, with novel appearance.

two

The equipment adopts motor transmission gearbox, reducer and upper and lower hard disk drive structure

Helical gear, crawler wheel, stable transmission, large bearing capacity and convenient maintenance.

3.The whole series has

200kg-15000kg has more than ten specifications, and Z has two speed regulating structures

4. DC motor or

Variable frequency motor for users to choose. 4. Electronic meter is adopted, which can display the line speed and meter length in real time.

5.It is equipped with grounding shaft transmission structure for users to use in cables, armor, copper tape shielding and windings

production line.

6. The tension tractor adopts magnetic powder tension control for insulation traction

And sheath extrusion line. The tension can be adjusted immediately to prevent cable abrasion in the water tank

After extrusion, the synchronization problem is effectively solved. And the influence of uneven tension on the diameter of steel wire.

7. The small tractor adopts the structure of integral movement or upper frame movement, which is convenient for users to use in special occasions

And effectively improve the repeated service life of the track.


type
Max. traction force(kg)
Cable through the outer diameter(mm)
Track contact length(mm)
Track width
Number of cylinder(pair)
Traction speed
TQD 300
300
≤Ø 15
390
60
3
200
TQD 500
500
≤Ø 30
850
80
3
150
TQD 800
800
≤Ø 40
1150
80
4
120
TQD 1250
1250
≤Ø 60
1600
120
5
100
TQD 1600
1600
≤Ø 80
1900
120
6
80
TQD 2000
2000
≤Ø 100
2300
120
7
80
TQD 2500
2500
≤Ø 120
2500
140
8
60
TQD 3200
3200
≤Ø 150
2800
140
9
60
TQD 4000
4000
≤Ø 180
3500
160
10
30
TQD 5000
5000
≤Ø 200
4000
180
11
30
