Cable Auxiliaries

1600mm-2500mm Column End-shaft Wire Pay-off and Take-up Machine

  • Model Number:1600/2500MM
  • Usage:winding/cable coiling
  • Voltage:380V
  • Warranty time: 12 months
  • Payment: T/T
  • Delivery Time: 50-90 days.
  • Foundation demand: Not
  • Product Detail

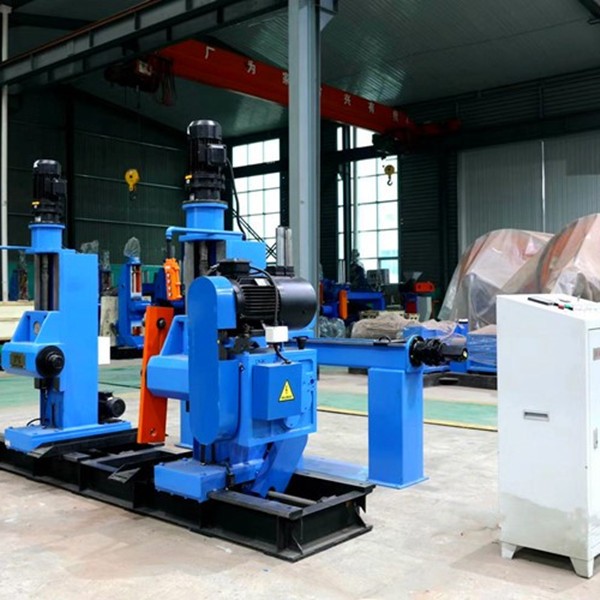

1600mm-2500mm Column End-shaft Wire Pay-off and Take-up Machine.


1. Use:

It is mainly used for auxiliary machinery of cable and wire manufacturing machinery. For example, stranding or extrusion equipment is used for setting out or take-up.


Product features:


The end shaft take-up and take-off frame (without foundation) is made of metal materials, with high structural strength and beautiful appearance. It is suitable for spools of different sizes, cables / wires (diameters) of different sizes, as well as metal conductors and insulated cables. It is also a good choice for different production lines. It has fast setting out and take-up speed and reliable working performance.

Model

1600

2000

2500

3200

Line disc type(mm)

PN800-1600

PN1000-2000

PN1600-2500

PN1600-3150

Lnstall bobbin shaft rotate spdde

≤5T

≤10T

≤12T

≤20T

Take-up shaft rotate speed

18.8-47.6r/min

6-15.5r/min

6-15.5r/min

12r/min

Take-up speed (m/min)

JLJ132-40/4

N=1000

JLJ160-60/6

N=1000

JLJ160-80/6

N=1000

JLJ160-80/6

N=1000

Lift motor(kw)

1.1

1.5

1.5

2.2

Columu moving motor

0.75

1.1

1.1

1.5

Tracersepitch(mm)

6-40

10-80

10-80

25-140
